The Pillar is Yocan's mid-priced portable e-rig built around replaceable TGT coils, a magnetic glass connection, water filtration, adjustable airflow, three voltage levels, and a 1400 mAh battery. Its value proposition is straightforward: provide the central e-rig workflow without entering the highest premium price tier.
The price in this title describes its historical Canadian category, not a guaranteed current offer. Check live availability and pricing before comparing it with any $400-plus alternative.
What is included
Yocan's official Pillar package information lists the device with coil adapter, glass, two TGT coils, loading tool, USB-C cable, and instructions. Included coil versions can vary by production package, so confirm the current Canadian listing rather than assuming every box contains the same pair.
The complete kit is important because the magnetic glass and model-specific atomizer make the Pillar a system, not only a battery. Replacing lost or broken glass should be part of the ownership-cost comparison.
Design and ergonomics
Official dimensions are approximately 183 mm tall by 40 mm wide, with a zinc-alloy body. That is compact for a water-filtered e-rig but much larger and more fragile than a dab pen. The cylindrical base is intended for one-handed operation while the glass remains removable.
The magnetic connection makes chamber access faster than a threaded glass assembly. It also means the mating surfaces need to stay clean and the glass should be lifted from the intended area rather than used as a handle for the whole device.
TGT coil system
Yocan describes TGT technology as combining a ceramic donut with quartz XTAL rods. The chamber avoids a conventional exposed wire-and-rod layout at the loading surface while still using replaceable heating assemblies.
Replaceable coils make service simple compared with a permanently integrated chamber, but they remain a recurring cost. Pillar TGT coils are model-specific; do not substitute a Cubex or pen coil because it shares a TGT name — the coil compatibility chart explains the families.
The kit's value improves when genuine replacement coils are available locally. Check that before choosing a discounted or old-stock Pillar.
Voltage and working modes
The Pillar offers three voltage levels: 3.2, 3.7, and 4.2 volts. Three clicks change the setting according to Yocan's official instructions. Lower is the sensible start, especially with a fresh coil and small load.
Manual mode heats while the button is held. Automatic mode starts with a double press and can run up to the safety cutoff. An automatic cycle is convenient, but it does not mean every load requires the full duration. Stop early when appropriate and avoid reheating an empty chamber.
Airflow and water filtration
A side control adjusts intake. Begin near the middle, then make small changes. Very restricted airflow can make the draw feel heavy and reduce cooling; extremely open airflow may move material away from the intended area.
Use only the water level recommended for the glass. Too much water can reach areas that should remain dry; too little reduces the intended filtration. Remove the glass from the electronic base before filling or emptying it.
Battery and charging
Yocan lists a 1400 mAh internal battery, USB-C charging, 5V/0.8A input, and roughly two hours to full charge. That capacity is substantial compared with a pen but supports a larger heater and longer sessions.
Use appropriate charging equipment and observe the device. The Pillar should not be used with a loose port, damaged cable, swollen enclosure, or abnormal heat. Battery capacity will decline over time because the cell is rechargeable and internal.
Cleaning
Let the device cool, remove the glass, and wipe the chamber after use before residue hardens. Clean the glass separately and allow it to dry fully. Keep water and alcohol away from the base, charging port, and installed electrical contacts.
Remove a TGT coil only according to the manual. Do not scrape ceramic or quartz with metal — the coil cleaning guide covers the safe routine. If a coil remains burnt, cracked, leaking, or electrically unstable after gentle cleaning, replace it.
Pillar versus premium e-rigs
Premium devices may add exact temperature selection, app control, more elaborate chamber technology, charging docks, or broader accessory ecosystems. Pillar uses three voltage levels and replaceable TGT coils instead. That is less granular, but easier to understand and potentially cheaper to service.
The comparison should include Canadian price, warranty route, coil availability, glass replacement, and battery service—not only maximum heat or branding. A premium device with unavailable parts is not automatically the better long-term purchase.
Who should buy it
Pillar makes sense for someone who wants integrated water filtration and automatic or manual sessions at a mid-tier price, accepts three presets instead of exact temperature control, and can source TGT coils. It is less suitable when pocket portability or minimal cleaning is the priority.

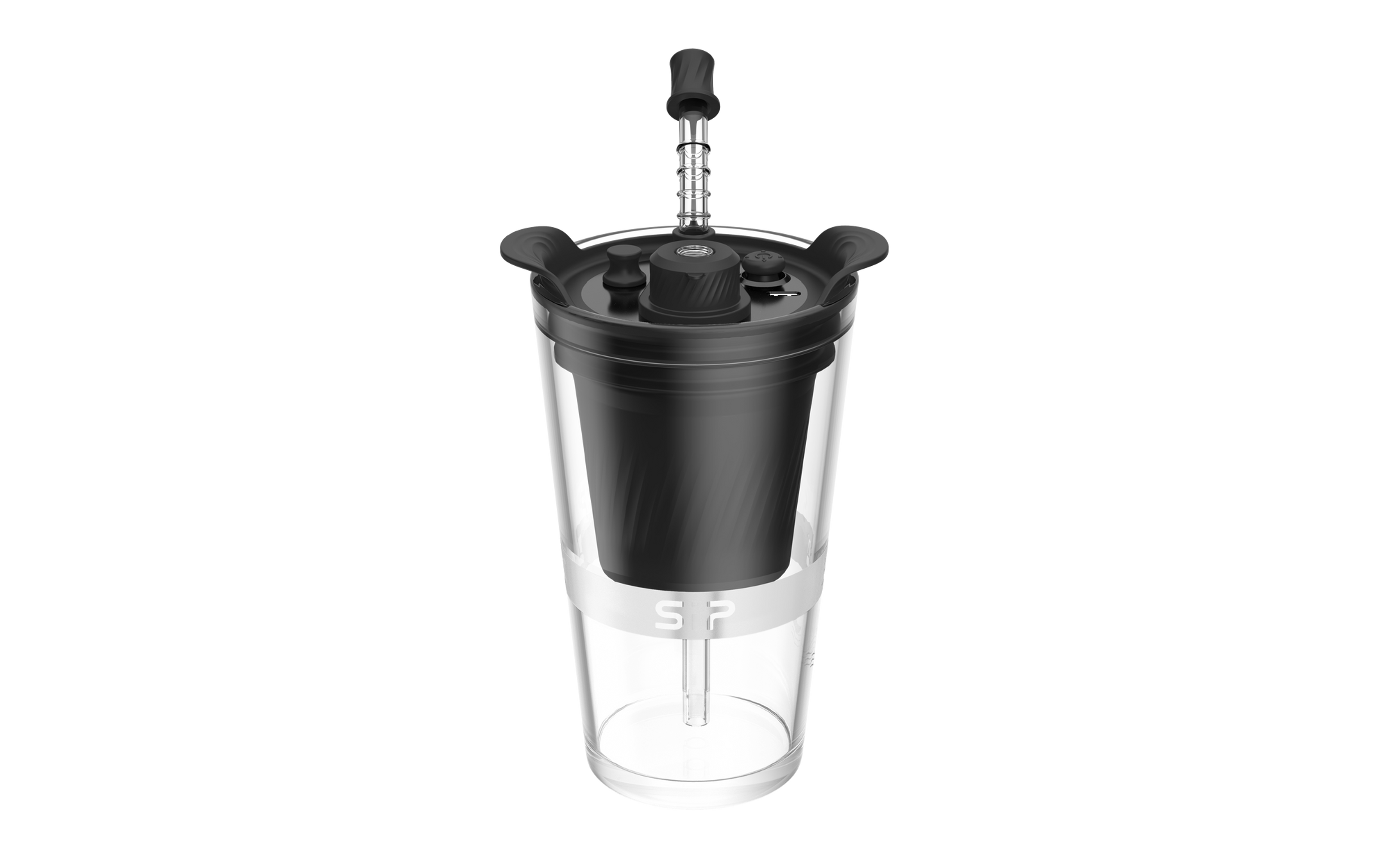

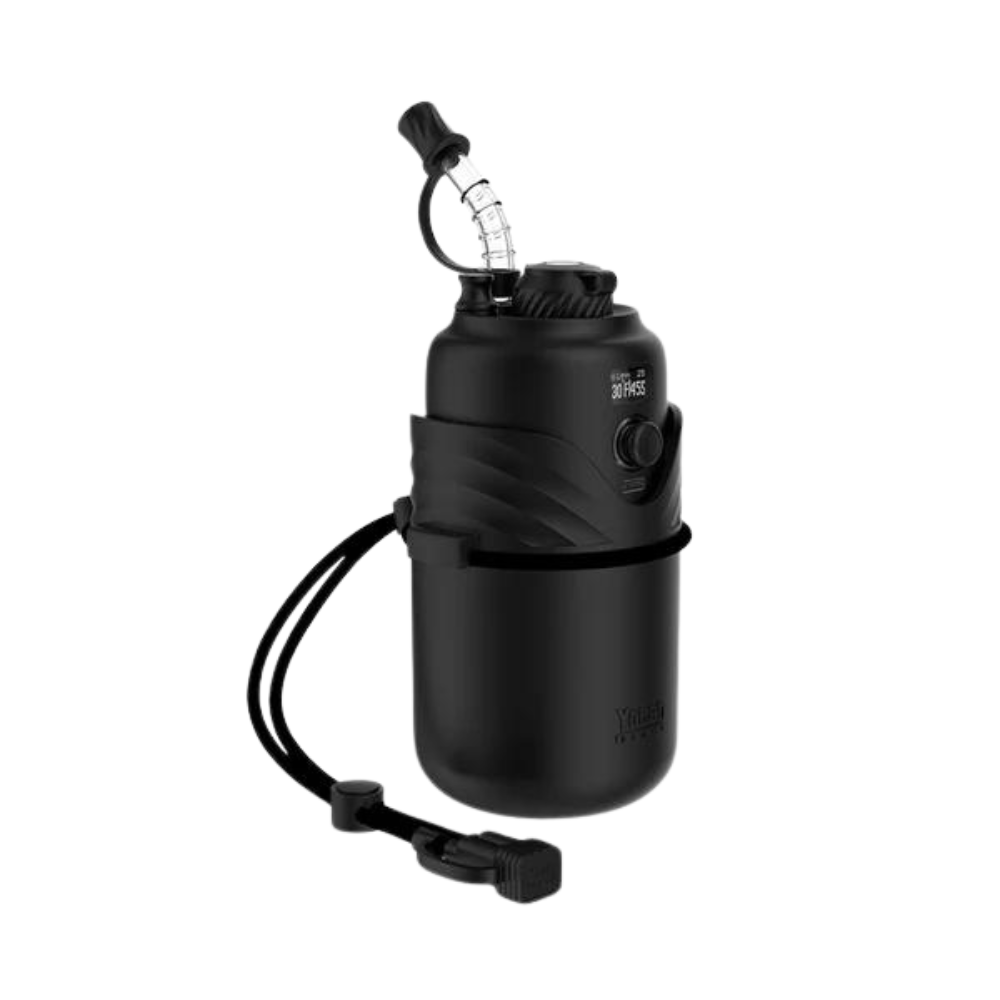

If Pillar is not currently stocked, compare the live e-rig products below. The Yocan iCan represents a more affordable complete e-rig, while Yocan Black models occupy a higher price and feature tier. The e-rig vs dab pen vs eNail guide explains the format tradeoffs.
Verdict
The Pillar's strengths are a complete water-filtered format, magnetic glass access, adjustable airflow, straightforward three-level control, and replaceable hybrid TGT heating. Its weaknesses are the ordinary e-rig burdens: glass care, more cleaning, model-specific consumables, and less portability than a pen.
At the right live price with coils available, it remains a rational value e-rig. Without replacement support, even a strong clearance price should be approached cautiously.
Official specifications
Common questions
What coil does the Yocan Pillar use?
The Pillar uses model-specific TGT coils. Yocan describes the TGT design as combining a ceramic donut and quartz XTAL rods.
What are the Yocan Pillar voltage settings?
Official specifications list three levels: 3.2, 3.7, and 4.2 volts. Start at the lowest setting and increase only when needed.
How large is the Pillar battery?
Yocan lists a 1400 mAh battery with USB-C charging and an approximate two-hour charging time using the specified 5V/0.8A input.
Is the Pillar currently available in Canada?
Availability changes. Check the live e-rig collection; if the Pillar is unavailable, compare current Yocan iCan and Yocan Black e-rig options.
